Electrofusion Welding & Tools

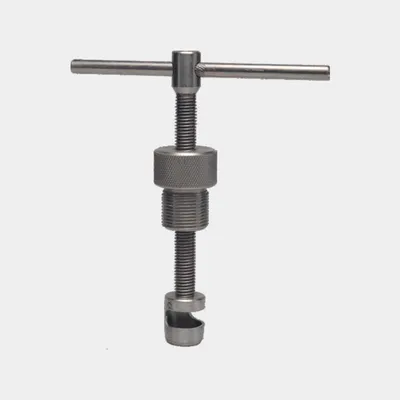

These tools have been designed to drill pipes after the Electrofusion ofTapping Saddles (Ferrules) with Female SS inserts Without producing flakes or burrs, they work with pipes between 16mm and 315mm diameter having PN16 rating The tools have been designed to work specifically on Tapping saddles (Ferrules) with Female SS inserts having½",¾" or 1" BSPthreads The tool is completely adjustable for different sizes of Saddles with same size of Female SS insert

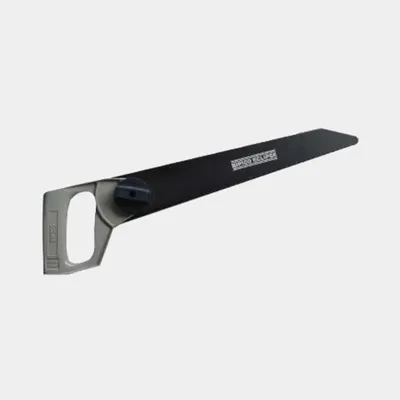

These type of cutters are required to cutthe bigger diameter of pipe. It can be used in confined space because it can be set at the desired angle with the help of swivelling clamp for the blade. These are very easy to handle and commonly used for Pipe or wood cutting. With every forward movement of the blade, material gets sawed out from the pipe till the pipe is cut in 2 pieces. These Saws are advised for use above 125 mm to 315 mm diameter.

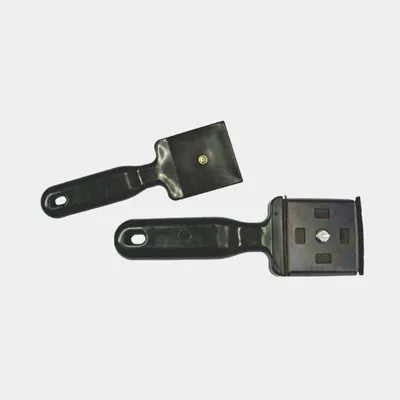

The scrapers will remove the thin Oxidized layer of PE pipe ensuring no high depth scratches or cuts to the pipe. With simple operation, the scraper handle is held by 2 hands, so that the scraping or cutting edge makes 45 degrees angle to the pipe surface

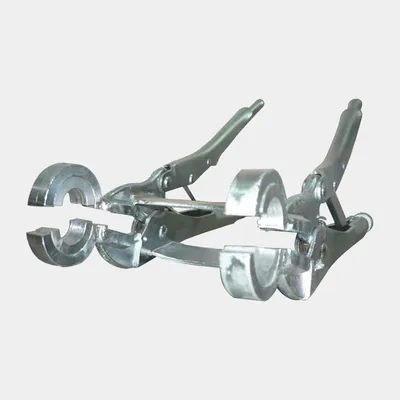

This tool has been designed to restrain, align and reround pipe, before and during the electrofusion process.It works with pipes between 20mm and 32mm diameter

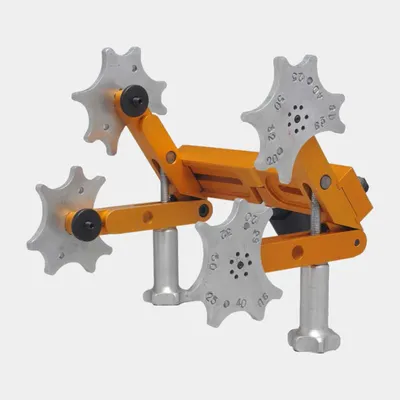

These tools have been designed to restrain and align pipes before and during the electrofusion process. They work with pipes between 16mm and 75mm diameter

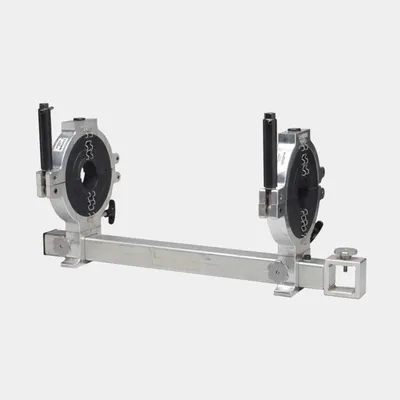

These tools have been designed to restrain, align and reround pipe, before and during the electrofusion process. They work with pipes between 63 to 125 mm diameter

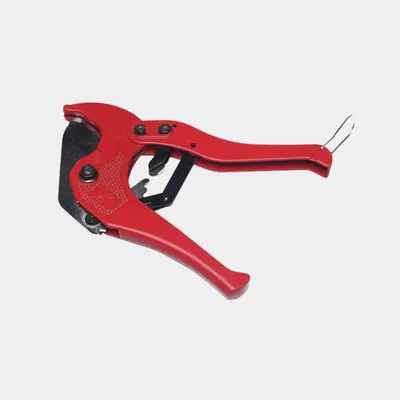

These types of cutters are required to cut the pipe at the correct pressure, ensuring little buckling & also to ensure no irregularities in the Cut section of the pipe

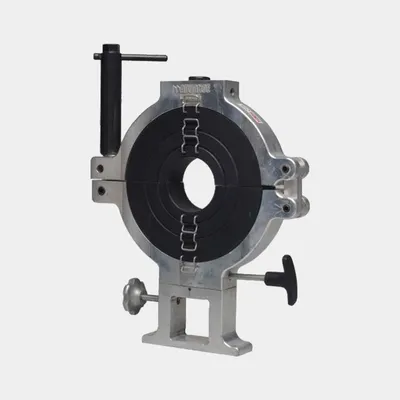

These tools have been designed to reround pipe (Especially a coiled pipe that becomes elliptical after uncoiling), before Electrofusion process They work with pipes between 63 to 180 mm diameter Different diameter shells can be fitted to ring to allow the exact diameter of pipe to be re-rounded The tool is completely adjustable and easy to handle

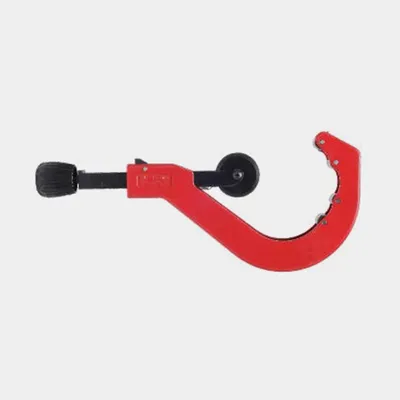

These type of cutters are required to cut the pipe at the correct pressure ensuring "No buckling" and also to ensure no irregularities in the Cut section of the pipe. The cutter size will get decided depending up on its use. It cannot be used in confined space because it needs to be rotated around the pipe. These are preferred to Guillotine cutters for smooth & gradual cut

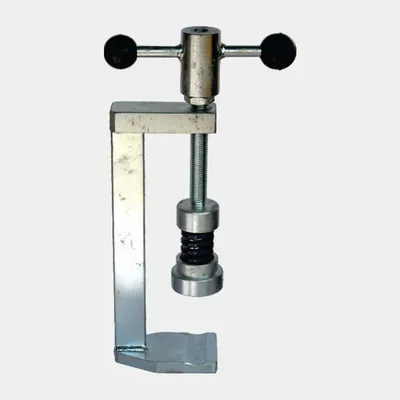

These tools have been designed to hold saddles onto pipe at the correct top load of 1 KN to 1.5 KN, before and during the electrofusion process. They work with tapping saddles, branch saddles and purge saddles. The tool has been designed to hold saddles on pipe from 32 to 50 mm diameter. The tool is a Pillar type design.

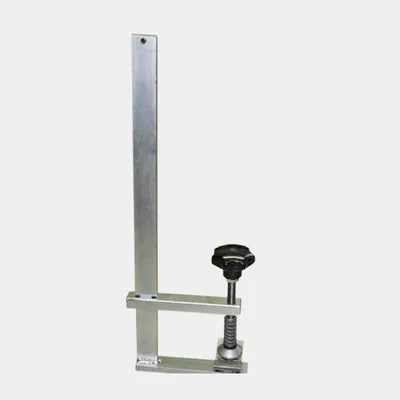

These tools have been designed to hold saddles onto pipe at the correct pressure of 1.5kN, before and during the electrofusion process They work with tapping saddles, branch saddles and purge saddles Saddles with stacks of 63 mm to 125 mm can be held The tool has been designed to hold saddles on pipe from 63 to 125 mm diameter The tool is a Pillar type design

These tools have been designed to hold saddles onto pipe at the correct pressure of 1.5kN, before and during the electrofusion process They work with tapping saddles, branch saddles & purge saddles Saddles with stacks of 63 mm to 315 mm can be held The tool has been designed to hold saddles on pipe from 63 to 315 mm diameter The tool is a Pillar type design

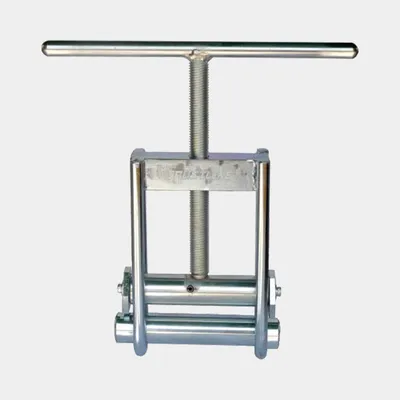

These tools have been designed to temporarily stop the flow of gas or water in a plastic pipe, while a repair is carried out or while providing services on existing pipe. Squeeze clamps manually they squeeze the pipe down to a set amount, as defined in the Transco specification GIS/ PL2-7: 2006. To ensure the pipe is not damaged due to excessive squeezing, the tool is fitted with adjustable cam plate that can be set according to pipe diameter and SOR rating.

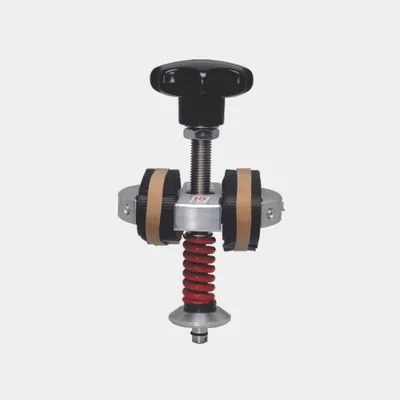

These tools have been designed to hold saddles onto pipe at the correct pressure of 1.5kN, before and during the electrofusion process They work with tapping saddles, branch saddles & purge saddles Saddles with stacks of 63 mm to 500 mm can be held The tool has been designed to hold saddles on pipe up to 500mm diameter The tool is a Strap type design

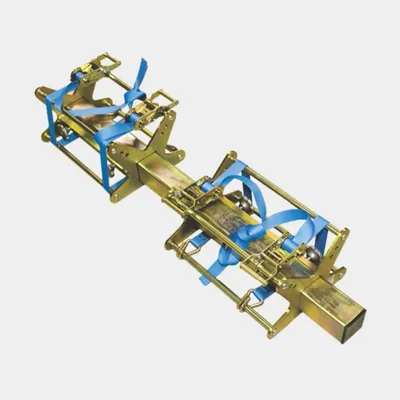

These tools have been designed to restrain and align pipe before and during the electrofusion process. They work with pipes between 63mm to 200 mm and 63 to 400 mm diameter. The pipe sits into a Vee shape allowing all sizes of pipe to be held, including non-standard sizes. Reducers can be clamped by using a special reducer-plate.
